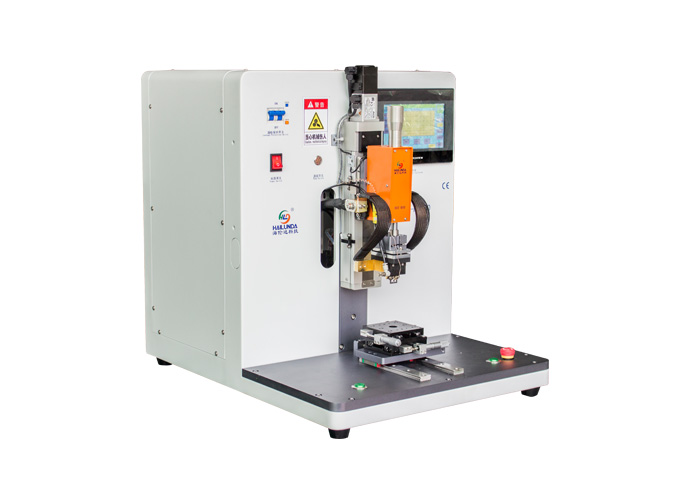

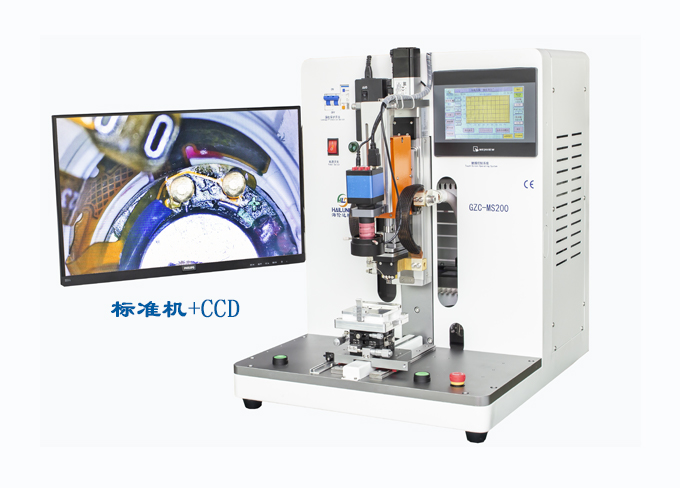

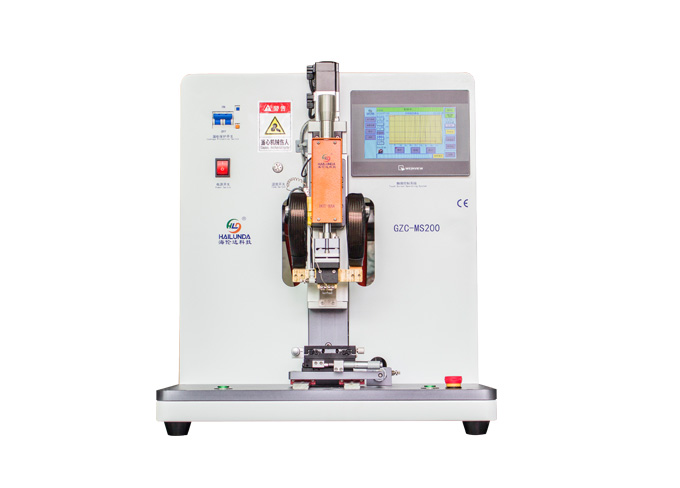

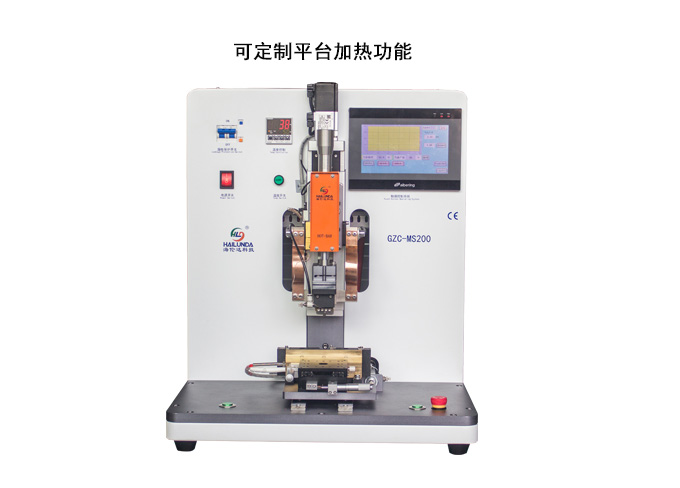

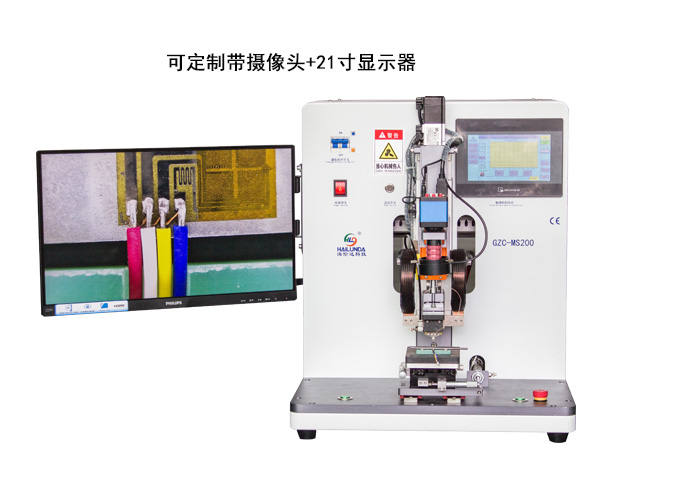

Pulse servo soldering machine alias pulse hot press, welding machine, haba soldering machine, pressure welding machine, automatic soldering machine

Main application industries:

1. Hot pressing and welding of flexible circuit board in LCD, PDP, mobile phone and other electronic products.

2, HDD, coil, capacitor, motor, sensor and other enameled wire soldering.

3, computers and other communication machines in the cable, connection port (USB/HDMI) welding.

4. Welding of CMOS, CCD and FPC boards for digital cameras and mobile phones.

5, Bluetooth headphone PCB board and FPC line welding.

6, the gold wire inside the microwave device hot pressing combination.

7, ink-jet printer motherboard, thermal printing head ceramic device connection FPC welding

8, medical instrument PCB board and FPC line welding

The working principle is to use the joule heat generated when pulse current flows through molybdenum alloy high resistance material to heat the welding way. Type K thermocouple is connected at the front end of the heating cutter head, and the generated power feeds back to the control power supply in real time to ensure the correctness of the set temperature.

Pulse current heating is an instantaneous heating mode, which is powered on only when the solder needs to be melted. After the solder melts, it stops powering on, cools, and pressurizes until the solder solidifies.

Characteristics of the equipment：

• Adopt Japanese Matsushita servo motor precision control pressing




• Adopt Japanese RKC temperature controller to control heating




• Pressure control adopts pressure following mechanism to provide continuous and stable welding pressure, so as to avoid welding collapse and improve welding quality




• The system can store 10 groups of product model parameter data




• When the production needs to switch between different models, it can be automatically matched with one button and automatically save the corresponding parameters
